Virtual Memory | Operating System

Virtual Memory is a storage allocation scheme in which secondary memory can be addressed as though it were part of main memory. The addresses a program may use to reference memory are distinguished from the addresses the memory system uses to identify physical storage sites, and program generated addresses are translated automatically to the corresponding machine addresses.
The size of virtual storage is limited by the addressing scheme of the computer system and amount of secondary memory is available not by the actual number of the main storage locations.

It is a technique that is implemented using both hardware and software. It maps memory addresses used by a program, called virtual addresses, into physical addresses in computer memory.

  1. All memory references within a process are logical addresses that are dynamically translated into physical addresses at run time. This means that a process can be swapped in and out of main memory such that it occupies different places in main memory at different times during the course of execution.
  2. A process may be broken into number of pieces and these pieces need not be continuously located in the main memory during execution. The combination of dynamic run-time addres translation and use of page or segment table permits this.

If these characteristics are present then, it is not necessary that all the pages or segments are present in the main memory during execution. This means that the required pages need to be loaded into memory whenever required. Virtual memory is implemented using Demand Paging or Demand Segmentation.

Demand Paging :
The process of loading the page into memory on demand (whenever page fault occurs) is known as demand paging.
The process includes the following steps :

  1. If CPU try to refer a page that is currently not available in the main memory, it generates an interrupt indicating memory access fault.
  2. The OS puts the interrupted process in a blocking state. For the execution to proceed the OS must bring the required page into the memory.
  3. The OS will search for the required page in the logical address space.
  4. The required page will be brought from logical address space to physical address space. The page replacement algorithms are used for the decision making of replacing the page in physical address space.
  5. The page table will updated accordingly.
  6. The signal will be sent to the CPU to continue the program execution and it will place the process back into ready state.

Hence whenever a page fault occurs these steps are followed by the operating system and the required page is brought into memory.

Advantages :

  • More processes may be maintained in the main memory: Because we are going to load only some of the pages of any particular process, there is room for more processes. This leads to more efficient utilization of the processor because it is more likely that at least one of the more numerous processes will be in the ready state at any particular time.
  • A process may be larger than all of main memory: One of the most fundamental restrictions in programming is lifted. A process larger than the main memory can be executed because of demand paging. The OS itself loads pages of a process in main memory as required.
  • It allows greater multiprogramming levels by using less of the available (primary) memory for each process.

Page Fault Service Time :
The time taken to service the page fault is called as page fault service time. The page fault service time includes the time taken to perform all the above six steps.

Let Main memory access time is: m
Page fault service time is: s
Page fault rate is : p
Then, Effective memory access time = (p*s) + (1-p)*m


Swapping a process out means removing all of its pages from memory, or marking them so that they will be removed by the normal page replacement process. Suspending a process ensures that it is not runnable while it is swapped out. At some later time, the system swaps back the process from the secondary storage to main memory. When a process is busy swapping pages in and out then this situation is called thrashing.

Thrashing :

At any given time, only few pages of any process are in main memory and therefore more processes can be maintained in memory. Furthermore time is saved because unused pages are not swapped in and out of memory. However, the OS must be clever about how it manages this scheme. In the steady state practically, all of main memory will be occupied with process’s pages, so that the processor and OS has direct access to as many processes as possible. Thus when the OS brings one page in, it must throw another out. If it throws out a page just before it is used, then it will just have to get that page again almost immediately. Too much of this leads to a condition called Thrashing. The system spends most of its time swapping pages rather than executing instructions. So a good page replacement algorithm is required.

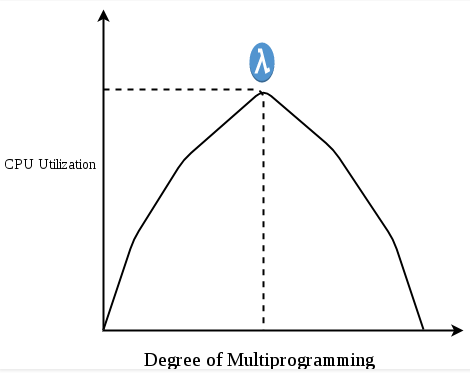

In the given diagram, initial degree of multi programming upto some extent of point(lamda), the CPU utilization is very high and the system resources are utilized 100%. But if we further increase the degree of multi programming the CPU utilization will drastically fall down and the system will spent more time only in the page replacement and the time taken to complete the execution of the process will increase. This situation in the system is called as thrashing.

Causes of Thrashing :

  1. High degree of multiprogramming : If the number of processes keeps on increasing in the memory than number of frames allocated to each process will be decreased. So, less number of frames will be available to each process. Due to this, page fault will occur more frequently and more CPU time will be wasted in just swapping in and out of pages and the utilization will keep on decreasing.
  2. For example:
    Let free frames = 400
    Case 1: Number of process = 100
    Then, each process will get 4 frames.
  3. Case 2: Number of process = 400
    Each process will get 1 frame.
    Case 2 is a condition of thrashing, as the number of processes are increased,frames per process are decreased. Hence CPU time will be consumed in just swapping pages.
  4. Lacks of Frames:If a process has less number of frames then less pages of that process will be able to reside in memory and hence more frequent swapping in and out will be required. This may lead to thrashing. Hence sufficient amount of frames must be allocated to each process in order to prevent thrashing.

Recovery of Thrashing :

  • Do not allow the system to go into thrashing by instructing the long term scheduler not to bring the processes into memory after the threshold.
  • If the system is already in thrashing then instruct the mid term schedular to suspend some of the processes so that we can recover the system from thrashing.

We have built the accelerating growth-oriented website for budding engineers and aspiring job holders of technology companies such as Google, Facebook, and Amazon
If you would like to study our free courses you can join us at #techcodebit #google #microsoft #facebook #interview portal #jobplacements

Operating System | Memory Management |Partition Allocation Method

In operating system, following are four common memory management techniques.

Single contiguous allocation:  Simplest allocation method used by MS-DOS.
                All memory (except some reserved for OS) is available to
                a process.
Partitioned allocation: Memory is divided in different blocks
Paged memory management: Memory is divided in fixed sized units called
                page frames, used in virtual memory environment.
Segmented memory management: Memory is divided in different segments (a
                segment is logical grouping of process' data or code)
                In this management, allocated memory does'nt  have to
                be contiguous.

Most of the operating systems (for example Windows and Linux) use Segmentation with Paging. A process is divided in segments and individual segments have pages.

In Partition Allocation, when there are more than one partition freely available to accommodate a process’s request, a partition must be selected. To choose a particular partition, a partition allocation method is needed. A partition allocation method is considered better if it avoids internal fragmentation.

Below are the various partition allocation schemes :

1. First Fit: In the first fit, partition is allocated which is first
    sufficient from the top of Main Memory.
2. Best Fit  Allocate the process to the partition which is first
    smallest sufficient partition among the free available partition.
3. Worst Fit  Allocate the process to the partition which is largest
    sufficient among the freely available partitions available in
    the main memory.
4. Next Fit Next fit is similar to the first fit but it will search
    for the first sufficient partition from the last allocation point.

Is Best-Fit really best?
Although, best fit minimizes the wastage space, it consumes a lot of processor time for searching the block which is close to required size. Also, Best-fit may perform poorer than other algorithms in some cases.

Deadlock Prevention And Avoidance

Deadlock Characteristics
Deadlock has following characteristics.

Mutual Exclusion.
Hold and Wait.
No preemption.
Circular wait.

Deadlock Prevention

We can prevent Deadlock by eliminating any of the above four condition.

Eliminate Mutual Exclusion
It is not possible to dis-satisfy the mutual exclusion because some resources, such as the tap drive and printer, are inherently non-shareable.

Eliminate Hold and wait
1. Allocate all required resources to the process before start of its execution, this way hold and wait condition is eliminated but it will lead to low device utilization. for example, if a process requires printer at a later time and we have allocated printer before the start of its execution printer will remained blocked till it has completed its execution.

2. Process will make new request for resources after releasing the current set of resources. This solution may lead to starvation.

Eliminate No Preemption
Preempt resources from process when resources required by other high priority process.

Eliminate Circular Wait
Each resource will be assigned with a numerical number. A process can request for the resources only in increasing order of numbering.
For Example, if P1 process is allocated R5 resources, now next time if P1 ask for R4, R3 lesser than R5 such request will not be granted, only request for resources more than R5 will be granted.

Deadlock Avoidance

Deadlock avoidance can be done with Banker’s Algorithm.

Banker’s Algorithm

Bankers’s Algorithm is resource allocation and deadlock avoidance algorithm which test all the request made by processes for resources, it check for safe state, if after granting request system remains in the safe state it allows the request and if their is no safe state it don’t allow the request made by the process.

Inputs to Banker’s Algorithm
1. Max need of resources by each process.
2. Currently allocated resources by each process.
3. Max free available resources in the system.

Request will only be granted under below condition.
1. If request made by process is less than equal to max need to that process.

2. If request made by process is less than equal to freely availbale resource in the system.


Total resources in system:
6 5 7 6
Available system resources are:
3 1 1 2
Processes (currently allocated resources):
    A B C D
P1  1 2 2 1
P2  1 0 3 3
P3  1 2 1 0
Processes (maximum resources):
    A B C D
P1  3 3 2 2
P2  1 2 3 4
P3  1 3 5 0
Need = maximum resources - currently allocated resources.
Processes (need resources):
    A B C D
P1  2 1 0 1
P2  0 2 0 1
P3  0 1 4 0

We have built the accelerating growth-oriented website for budding engineers and aspiring job holders of technology companies such as Google, Facebook, and Amazon
If you would like to study our free courses you can join us at #techcodebit #google #microsoft #facebook #interview portal #jobplacements

Disk Scheduling Algorithms

Disk scheduling is is done by operating systems to schedule I/O requests arriving for disk. Disk scheduling is also known as I/O scheduling.

Disk scheduling is important because:

  • Multiple I/O requests may arrive by different processes and only one I/O request can be served at a time by disk controller. Thus other I/O requests need to wait in waiting queue and need to be scheduled.
  • Two or more request may be far from each other so can result in greater disk arm movement.
  • Hard drives are one of the slowest parts of computer system and thus need to be accessed in an efficient manner.

There are many Disk Scheduling Algorithms but before discussing them let’s have a quick look at some of the important terms:

  • Seek Time:Seek time is the time taken to locate the disk arm to a specified track where the data is to be read or write. So the disk scheduling algorithm that gives minimum average seek time is better.
  • Rotational Latency: Rotational Latency is the time taken by the desired sector of disk to rotate into a position so that it can access the read/write heads. So the disk scheduling algorithm that gives minimum rotational latency is better.
  • Transfer Time: Transfer time is the time to transfer the data. It depends on the rotating speed of the disk and number of bytes to be transferred.
  • Disk Access Time: Disk Access Time is:
Disk Access Time = Seek Time +
                         Rotational Latency +
                         Transfer Time
  • Disk Response Time: Response Time is the average of time spent by a request waiting to perform its I/O operation. Average Response time is the response time of the all requests. Variance Response Time is measure of how individual request are serviced with respect to average response time. So the disk scheduling algorithm that gives minimum variance response time is better.

Disk Scheduling Algorithms

  1. FCFS: FCFS is the simplest of all the Disk Scheduling Algorithms. In FCFS, the requests are addressed in the order they arrive in the disk queue.


  • Every request gets a fair chance
  • No indefinite postponement


  • Does not try to optimize seek time
  • May not provide the best possible service
  1. SSTF: In SSTF (Shortest Seek Time First), requests having shortest seek time are executed first. So, the seek time of every request is calculated in advance in queue and then they are scheduled according to their calculated seek time. As a result, the request near the disk arm will get executed first. SSTF is certainly an improvement over FCFS as it decreases the average response time and increases the throughput of system.


  • Average Response Time decreases
  • Throughput increases


  • Overhead to calculate seek time in advance
  • Can cause Starvation for a request if it has higher seek time as compared to incoming requests
  • High variance of response time as SSTF favours only some requests
  1. SCAN: In SCAN algorithm the disk arm moves into a particular direction and services the requests coming in its path and after reaching the end of disk, it reverses its direction and again services the request arriving in its path. So, this algorithm works like an elevator and hence also known as elevator algorithm. As a result, the requests at the midrange are serviced more and those arriving behind the disk arm will have to wait.


  • High throughput
  • Low variance of response time
  • Average response time


  • Long waiting time for requests for locations just visited by disk arm
  1. CSCAN: In SCAN algorithm, the disk arm again scans the path that has been scanned, after reversing its direction. So, it may be possible that too many requests are waiting at the other end or there may be zero or few requests pending at the scanned area.

These situations are avoided in CSAN algorithm in which the disk arm instead of reversing its direction goes to the other end of the disk and starts servicing the requests from there. So, the disk arm moves in a circular fashion and this algorithm is also similar to SCAN algorithm and hence it is known as C-SCAN (Circular SCAN).


  • Provides more uniform wait time compared to SCAN
  1. LOOK: It is similar to the SCAN disk scheduling algorithm except the difference that the disk arm in spite of going to the end of the disk goes only to the last request to be serviced in front of the head and then reverses its direction from there only. Thus it prevents the extra delay which occurred due to unnecessary traversal to the end of the disk.
  2. CLOOK: As LOOK is similar to SCAN algorithm, in similar way, CLOOK is similar to CSCAN disk scheduling algorithm. In CLOOK, the disk arm inspite of going to the end goes only to the last request to be serviced in front of the head and then from there goes to the other end’s last request. Thus, it also prevents the extra delay which occurred due to unnecessary traversal to the end of the disk.

Each algorithm is unique in its own way.Overall Performance depends on number and type of requests.

We have built the accelerating growth-oriented website for budding engineers and aspiring job holders of technology companies such as Google, Facebook, and Amazon
If you would like to study our free courses you can join us at #techcodebit #google #microsoft #facebook #interview portal #jobplacements

File Systems | Operating System

A file is a collection of related information that is recorded on secondary storage. Or file is a collection of logically related entities. From user’s perspective a file is the smallest allotment of logical secondary storage.


Collection of files is a file directory. The directory contains information about the files, including attributes, location and ownership. Much of this information, especially that is concerned with storage, is managed by the operating system. The directory is itself a file, accessible by various file management routines.

Information contained in a device directory are:

  • Name
  • Type
  • Address
  • Current length
  • Maximum length
  • Date last accessed
  • Date last updated
  • Owner id
  • Protection information

Operation performed on directory are:

  • Search for a file
  • Create a file
  • Delete a file
  • List a directory
  • Rename a file
  • Traverse the file system

Advantages of maintaining directories are:

  • Efficiency: A file can be located more quickly.
  • Naming: It becomes convenient for users as two users can have same name for different files or may have different name for same file.
  • Grouping: Logical grouping of files can be done by properties e.g. all java programs, all games etc.

In this a single directory is maintained for all the users.

  • Naming problem: Users cannot have same name for two files.
  • Grouping problem: Users cannot group files according to their need.

In this separate directories for each user is maintained.

  • Path name:Due to two levels there is a path name for every file to locate that file.
  • Now,we can have same file name for different user.
  • Searching is efficient in this method.

Directory is maintained in the form of a tree. Searching is efficient and also there is grouping capability. We have absolute or relative path name for a file.

1. Continuous Allocation: A single continuous set of blocks is allocated to a file at the time of file creation. Thus, this is a pre-allocation strategy, using variable size portions. The file allocation table needs just a single entry for each file, showing the starting block and the length of the file. This method is best from the point of view of the individual sequential file. Multiple blocks can be read in at a time to improve I/O performance for sequential processing. It is also easy to retrieve a single block. For example, if a file starts at block b, and the ith block of the file is wanted, its location on secondary storage is simply b+i-1.


  • External fragmentation will occur, making it difficult to find contiguous blocks of space of sufficient length. Compaction algorithm will be necessary to free up additional space on disk.
  • Also, with pre-allocation, it is necessary to declare the size of the file at the time of creation.

2. Linked Allocation(Non-contiguous allocation) : Allocation is on an individual block basis. Each block contains a pointer to the next block in the chain. Again the file table needs just a single entry for each file, showing the starting block and the length of the file. Although pre-allocation is possible, it is more common simply to allocate blocks as needed. Any free block can be added to the chain. The blocks need not be continuous. Increase in file size is always possible if free disk block is available. There is no external fragmentation because only one block at a time is needed but there can be internal fragmentation but it exists only in the last disk block of file.


  • Internal fragmentation exists in last disk block of file.
  • There is an overhead of maintaining the pointer in every disk block.
  • If the pointer of any disk block is lost, the file will be truncated.
  • It supports only the sequencial access of files.

3. Indexed Allocation:
It addresses many of the problems of contiguous and chained allocation. In this case, the file allocation table contains a separate one-level index for each file: The index has one entry for each block allocated to the file. Allocation may be on the basis of fixed-size blocks or variable-sized blocks. Allocation by blocks eliminates external fragmentation, whereas allocation by variable-size blocks improves locality. This allocation technique supports both sequential and direct access to the file and thus is the most popular form of file allocation.

Disk Free Space Management

Just as the space that is allocated to files must be managed ,so the space that is not currently allocated to any file must be managed. To perform any of the file allocation techniques,it is necessary to know what blocks on the disk are available. Thus we need a disk allocation table in addition to a file allocation table.The following are the approaches used for free space management.

  1. Bit Tables : This method uses a vector containing one bit for each block on the disk. Each entry for a 0 corresponds to a free block and each 1 corresponds to a block in use.
    For example: 00011010111100110001
  2. In this vector every bit correspond to a particular vector and 0 implies that, that particular block is free and 1 implies that the block is already occupied. A bit table has the advantage that it is relatively easy to find one or a contiguous group of free blocks. Thus, a bit table works well with any of the file allocation methods. Another advantage is that it is as small as possible.
  3. Free Block List : In this method, each block is assigned a number sequentially and the list of the numbers of all free blocks is maintained in a reserved block of the disk.

We have built the accelerating growth-oriented website for budding engineers and aspiring job holders of technology companies such as Google, Facebook, and Amazon
If you would like to study our free courses you can join us at #techcodebit #google #microsoft #facebook #interview portal #jobplacements

Operating System | Paging

Paging is a memory management scheme that eliminates the need for contiguous allocation of physical memory. This scheme permits the physical address space of a process to be non — contiguous.

  • Logical Address or Virtual Address (represented in bits): An address generated by the CPU
  • Logical Address Space or Virtual Address Space( represented in words or bytes): The set of all logical addresses generated by a program
  • Physical Address (represented in bits): An address actually available on memory unit
  • Physical Address Space (represented in words or bytes): The set of all physical addresses corresponding to the logical addresses

The mapping from virtual to physical address is done by the memory management unit (MMU) which is a hardware device and this mapping is known as paging technique.

  • The Physical Address Space is conceptually divided into a number of fixed-size blocks, called frames.
  • The Logical address Space is also splitted into fixed-size blocks, called pages.
  • Page Size = Frame Size

Let us consider an example:

  • Physical Address = 12 bits, then Physical Address Space = 4 K words
  • Logical Address = 13 bits, then Logical Address Space = 8 K words
  • Page size = frame size = 1 K words (assumption)

Address generated by CPU is divided into

  • Page number(p): Number of bits required to represent the pages in Logical Address Space or Page number
  • Page offset(d): Number of bits required to represent particular word in a page or page size of Logical Address Space or word number of a page or page offset.

Physical Address is divided into

  • Frame number(f): Number of bits required to represent the frame of Physical Address Space or Frame number.
  • Frame offset(d): Number of bits required to represent particular word in a frame or frame size of Physical Address Space or word number of a frame or frame offset.

The hardware implementation of page table can be done by using dedicated registers. But the usage of register for the page table is satisfactory only if page table is small. If page table contain large number of entries then we can use TLB(translation Look-aside buffer), a special, small, fast look up hardware cache.

  • The TLB is associative, high speed memory.
  • Each entry in TLB consists of two parts: a tag and a value.
  • When this memory is used, then an item is compared with all tags simultaneously.If the item is found, then corresponding value is returned.

We have built the accelerating growth-oriented website for budding engineers and aspiring job holders of technology companies such as Google, Facebook, and Amazon
If you would like to study our free courses you can join us at #techcodebit #google #microsoft #facebook #interview portal #jobplacements

Deadlock Detection And Recovery

In the previous post, we have discussed Deadlock Prevention and Avoidance. In this post, Deadlock Detection and Recovery technique to handle deadlock is discussed.

Deadlock Detection

1. If resources have single instance:
In this case for Deadlock detection we can run an algorithm to check for cycle in the Resource Allocation Graph. Presence of cycle in the graph is the sufficient condition for deadlock.

In the above diagram, resource 1 and resource 2 have single instances. There is a cycle R1–>P1–>R2–>P2. So Deadlock is Confirmed.

2. If there are multiple instances of resources:
Detection of cycle is necessary but not sufficient condition for deadlock detection, in this case system may or may not be in deadlock varies according to different situations.

Deadlock Recovery
Traditional operating system such as Windows doesn’t deal with deadlock recovery as it is time and space consuming process. Real time operating systems use Deadlock recovery.

Recovery method

1. Killing the process.

killing all the process involved in deadlock.
     Killing process one by one. After killing each
     process check for deadlock again keep repeating
     process till system recover from deadlock.

2. Resource Preemption
Resources are preempted from the processes involved in deadlock, preempted resources are allocated to other processes, so that their is a possibility of recovering the system from deadlock. In this case system go into starvation.

We have built the accelerating growth-oriented website for budding engineers and aspiring job holders of technology companies such as Google, Facebook, and Amazon
If you would like to study our free courses you can join us at #techcodebit #google #microsoft #facebook #interview portal #jobplacements

Operating System | Process Management | Deadlock Introduction

A process in operating systems uses different resources and uses resources in following way.
1) Requests a resource
2) Use the resource
2) Releases the resource

Deadlock is a situation where a set of processes are blocked because each process is holding a resource and waiting for another resource acquired by some other process.
Consider an example when two trains are coming toward each other on same track and there is only one track, none of the trains can move once they are in front of each other. Similar situation occurs in operating systems when there are two or more processes hold some resources and wait for resources held by other(s). For example, in the below diagram, Process 1 is holding Resource 1 and waiting for resource 2 which is acquired by process 2, and process 2 is waiting for resource 1.

Deadlock can arise if following four conditions hold simultaneously (Necessary Conditions)
Mutual Exclusion: One or more than one resource are non-sharable (Only one process can use at a time)
Hold and Wait: A process is holding at least one resource and waiting for resources.
No Preemption: A resource cannot be taken from a process unless the process releases the resource.
Circular Wait: A set of processes are waiting for each other in circular form.

Methods for handling deadlock
There are three ways to handle deadlock
1) Deadlock prevention or avoidance: The idea is to not let the system into deadlock state.

2) Deadlock detection and recovery: Let deadlock occur, then do preemption to handle it once occurred.

3) Ignore the problem all together: If deadlock is very rare, then let it happen and reboot the system. This is the approach that both Windows and UNIX take.

We have built the accelerating growth-oriented website for budding engineers and aspiring job holders of technology companies such as Google, Facebook, and Amazon
If you would like to study our free courses you can join us at #techcodebit #google #microsoft #facebook #interview portal #jobplacements

Operating System | Process Synchronization | Introduction

On the basis of synchronization, processes are categorized as one of the following two types:

  • Independent Process : Execution of one process does not affects the execution of other processes.
  • Cooperative Process : Execution of one process affects the execution of other processes.

Process synchronization problem arises in the case of Cooperative process also because resources are shared in Cooperative processes.

Critical Section Problem

Critical section is a code segment that can be accessed by only one process at a time. Critical section contains shared variables which need to be synchronized to maintain consistency of data variables.


entry section

critical section

exit section

remainder section


In the entry section, the process requests for entry in the Critical Section.

Any solution to the critical section problem must satisfy three requirements:

  • Mutual Exclusion : If a process is executing in its critical section, then no other process is allowed to execute in the critical section.
  • Progress : If no process is in the critical section, then no other process from outside can block it from entering the critical section.
  • Bounded Waiting : A bound must exist on the number of times that other processes are allowed to enter their critical sections after a process has made a request to enter its critical section and before that request is granted.

Peterson’s Solution
Peterson’s Solution is a classical software based solution to the critical section problem.

In Peterson’s solution, we have two shared variables:

  • boolean flag[i] :Initialized to FALSE, initially no one is interested in entering the critical section
  • int turn : The process whose turn is to enter the critical section.




while(flag[i] && turn==j);

critical section


remainder section


Peterson’s Solution preserves all three conditions :

  • Mutual Exclusion is assured as only one process can access the critical section at any time.
  • Progress is also assured, as a process outside the critical section does not blocks other processes from entering the critical section.
  • Bounded Waiting is preserved as every process gets a fair chance.
  • It involves Busy waiting
  • It is limited to 2 processes.

Binary Semaphores : They can only be either 0 or 1. They are also known as mutex locks, as the locks can provide mutual exclusion. All the processes can share the same mutex semaphore that is initialized to 1. Then, a process has to wait until the lock becomes 0. Then, the process can make the mutex semaphore 1 and start its critical section. When it completes its critical section, it can reset the value of mutex semaphore to 0 and some other process can enter its critical section.

Counting Semaphores : They can have any value and are not restricted over a certain domain. They can be used to control access a resource that has a limitation on the number of simultaneous accesses. The semaphore can be initialized to the number of instances of the resource. Whenever a process wants to use that resource, it checks if the number of remaining instances is more than zero, i.e., the process has an instance available. Then, the process can enter its critical section thereby decreasing the value of the counting semaphore by 1. After the process is over with the use of the instance of the resource, it can leave the critical section thereby adding 1 to the number of available instances of the resource.

We have built the accelerating growth-oriented website for budding engineers and aspiring job holders of technology companies such as Google, Facebook, and Amazon
If you would like to study our free courses you can join us at #techcodebit #google #microsoft #facebook #interview portal #jobplacements

Operating System | Critical Section

Critical Section:

In simple terms a critical section is group of instructions/statements or region of code that need to be executed atomically, such as accessing a resource (file, input or output port, global data, etc.).

In concurrent programming, if one thread tries to change the value of shared data at the same time as another thread tries to read the value (i.e. data race across threads), the result is unpredictable.

The access to such shared variable (shared memory, shared files, shared port, etc…) to be synchronized. Few programming languages have built in support for synchronization.

It is critical to understand the importance of race condition while writing kernel mode programming (a device driver, kernel thread, etc.). since the programmer can directly access and modifying kernel data structures.

A simple solution to critical section can be thought as shown below,

Process Critical Section

A thread must acquire a lock prior to executing critical section. The lock can be acquired by only one thread. There are various ways to implement locks in the above pseudo code.

We have built the accelerating growth-oriented website for budding engineers and aspiring job holders of technology companies such as Google, Facebook, and Amazon
If you would like to study our free courses you can join us at #techcodebit #google #microsoft #facebook #interview portal #jobplacements
